Automated Laundry / Linen Management

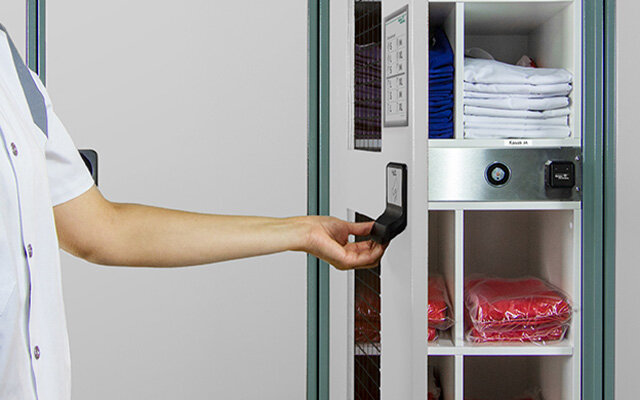

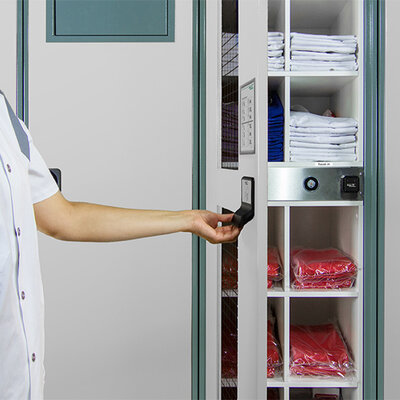

Measuring 610 x 2220 x 551 mm (W x H x D), the compact TCD 200 laundry dispenser cabinet fits effortlessly into any space. Capable of holding approximately 200 garments, each cabinet is equipped with a built-in access reader for instant user authorization. Users can simply present their RFID card to the access reader and retrieve their laundry in under 5 seconds. Managing access authorizations is seamlessly handled through software.

All cabinets

Measuring 610 x 2220 x 543 mm (W x H x D), the TCR 50 is ideal for compact spaces while ensuring optimal usability. Specifically designed for laundry bags, the cabinet can accommodate approximately 50 pieces of laundry.

To return laundry, users can effortlessly deposit items through the opening of the return cabinet. The cabinet's built-in UHF reader automatically detects the laundry items equipped with transponders. When the laundry bag reaches full capacity, it can be easily replaced in a few simple steps.

All cabinets

The TCR 200 return cabinet is commonly utilized in larger premises with numerous users. Its dimensions of 1300 x 2267 x 1031 mm (W x H x D) make it well-suited for accommodating larger mesh containers, with the capacity to hold around 200 garments.

Returning garments is a simple process—users drop the items through the opening of the return unit. The transponders on the garments are instantly recognized by the built-in UHF reader within the cabinet. If the cabinet reaches full capacity, changing the mesh container is a quick and straightforward task.

All cabinets

The TCR 250 return cabinet is commonly deployed in larger premises with a high volume of users. Its dimensions of 1300 x 2402 x 1031 mm (W x H x D) make it well-suited for accommodating large mesh containers, capable of holding around 250 garments.

Users can effortlessly deposit laundry items into the unit. The flap height is adjustable in three positions, and there's also the option to electronically lock the flap, which can be released using an ID card and reader. The built-in UHF reader in the cabinet automatically identifies the laundry transponders attached to the items. When the cabinet reaches full capacity, changing the mesh container is a quick and straightforward process.

All cabinets

The TCR 300 return cabinet is a frequent choice for larger premises with numerous users. Distinguishing itself from the TCR 250, it features dimensions of 1050 x 2402 x 1731 mm (W x H x D) and is well-suited for accommodating large, deep mesh containers. The cabinet's ample volume allows for the return of approximately 300 garments.

Garments can be easily returned through the height-adjustable flap, offering three height positions. Optionally, the flap can be electronically locked and released via an ID card and reader. The built-in UHF reader automatically identifies laundry transponders. When the cabinet is full, changing the mesh container inside is a quick and straightforward process.

All cabinets

The secure revolving door for accessing and departing the texRoom identifies each user using an RFID credential. As users exit through the revolving door, all textiles they've taken are promptly detected within 5 seconds, automatically updating their user account. The revolving door is equipped with an emergency stop switch, enabling the release of brakes for an immediate exit from the texRoom. This feature is also activated in the event of a power failure.

All gates & airlocks

The texGate serves as the entrance to the texRoom, ensuring automatic identification and inventory addition of all textiles equipped with transponders. Activated by a motion detector or an access control reader, the texGate signals its activity through a green illuminated LED bar when approached with a laundry container. This guarantees the detection of all textiles, and the texGate is compatible with commonly used mesh containers. With no maintenance-requiring components and a breathable roof, optimal air quality is maintained within the texGate at all times.

All gates & airlocks

The flapGate, serving as an exit and loading gate for the texRoom, ensures reliable identification and accounting of both user withdrawals and personnel loads. Users exit the texRoom through the flapGate, and the system automatically records and logs the garments removed, attributing them to the user's account. In case of users attempting to hoard workwear or supply colleagues beyond their quota, the flapGate can refuse exit.

Additionally, loading personnel can enter with laundry containers, facilitating the booking of clothing into the room stock. Positioned at the entrance/exit door to the loading room, the flapGate controls access permissions to this door. On the room side, a flexible motorized curtain manages access, while built-in LED bars clearly signal user access authorization.

All gates & airlocks

texCheck serves as an additional terminal for the manual check-in and check-out of garments, allowing users to manually process up to 10 textiles within the system.

All self-service stations

texInfo is an informational terminal designed for users to access their account overview. By presenting their RFID credential, users can easily view their available quota and see a list of clothing currently booked on their account.

All self-service stations

Freshly laundered items can be scheduled for pickup at the texLoad station. To initiate this, the newly laundered clothes are registered at the texLoad station and placed in a transport trolley destined for either the laundry storage or distribution area. Once the trolley is fully loaded, the registered laundry within that specific trolley is associated with the trolley transponder.

Upon arrival at the storage area, only the trolley transponder is scanned, and the garments linked to it are consequently logged into the inventory. This process is facilitated through the trolleyScan.

• Dependable and straightforward enrollment of freshly laundered items
• An uncomplicated and transparent procedure

All delivery products

The trolleyScan registers and logs trolleys containing garments linked to trolley transponders. Typically, the trolleyScan is situated in the texRoom, ensuring automatic booking as soon as the trolley is wheeled into the texRoom.

Simply push the trolley into the room, and it gets automatically booked – it's as straightforward as that.

• Dependable and straightforward booking
• An automated process devoid of manual steps

All delivery products

The basic version of Commander Connect includes all necessary functions, device licenses and areas for a simple system. From there, additional device licenses and expansion modules can be used to extend the software to fit your system.

• User management (single users, groups, etc.)
• Device administration
• Basic article management
• Workflows to automate the system
• Basic reports

Commander Connect

Precise policies can be set per user or per user group. The individual user accounts show the account balances at any time, which provide information about the consumption and the available quotas. As an admin, you can see exactly who has withdrawn or returned what and when. You can flexibly set limits so that your clothing stock is used according to your wishes and all employees always have enough workwear available.

You can also control who is allowed to remove their workwear from which issue cabinets or in which laundry rooms. In this way, you can also ensure that there are no queues in front of the issue point and that your employees have the shortest possible walking distances.

• Individual accounts per employee
• Flexible withdrawal limits
• Admin functions in case employees overdraw their account
• Control who can withdraw how much and from where

Garments are created as articles in the database and can be specified precisely depending on the available data, e.g. by size, color, material, etc. In addition, it is possible to create meaningful article groups to make the allocation and evaluation clear and simple.

Authorizations (which user is allowed to pick what?) can be defined very precisely. In addition to the assignment of which articles may be removed, it is also possible to define where the articles may be removed. For example, it can be precisely set that a user group is only allowed to take their clothes from the issue cabinets in their station.

• Group items and specify them precisely
• Reduce authorizations to specific locations
• Monitor user accounts
• Block output when users exceed quotas

Flexible reports allow you to evaluate targeted data so you can determine exactly the results you want. Have reports sent to you automatically, or displayed with real-time data in the deisterCockpit. From general inventory to overview (what is currently in returns), all data is available at the touch of a button - even logical queries such as comparing ACTUAL and TARGET inventories, allowing you to derive direct recommendations for action.

• Flexible reports, individually adjustable
• Logical queries and comparisons
• Automatic reports and real-time reports live
