The timeless design not only exudes high-quality aesthetics but also ensures smooth operation, thanks to deister electronic's renowned reading performance. Available in three different shapes, the readers seamlessly fit into various door spaces. Clear LED indicators on the readers communicate status information to users, even accommodating those with red/green color deficiency, as LED positions signify status.

Featuring a replaceable cover, the readers maintain their pristine appearance for years. Even after extensive use, a simple cover replacement revitalizes the reader, making it look brand new.

In addition to established reading technologies like MIFARE® Classic and MIFARE® DESFire, Bluetooth® and NFC™ are also supported. The readers boast an open interface (Triple Technology™) to integrate existing or forthcoming technologies, ensuring future-proof compatibility with Infinity Readers™.

• Highest quality construction
• Low power consumption
• Remote firmware update capability
• Triple Technology™ for versatile compatibility
• Available in two sleek colors: Cosmic Black & Astral Grey
• Interchangeable cover for easy maintenance

All readers

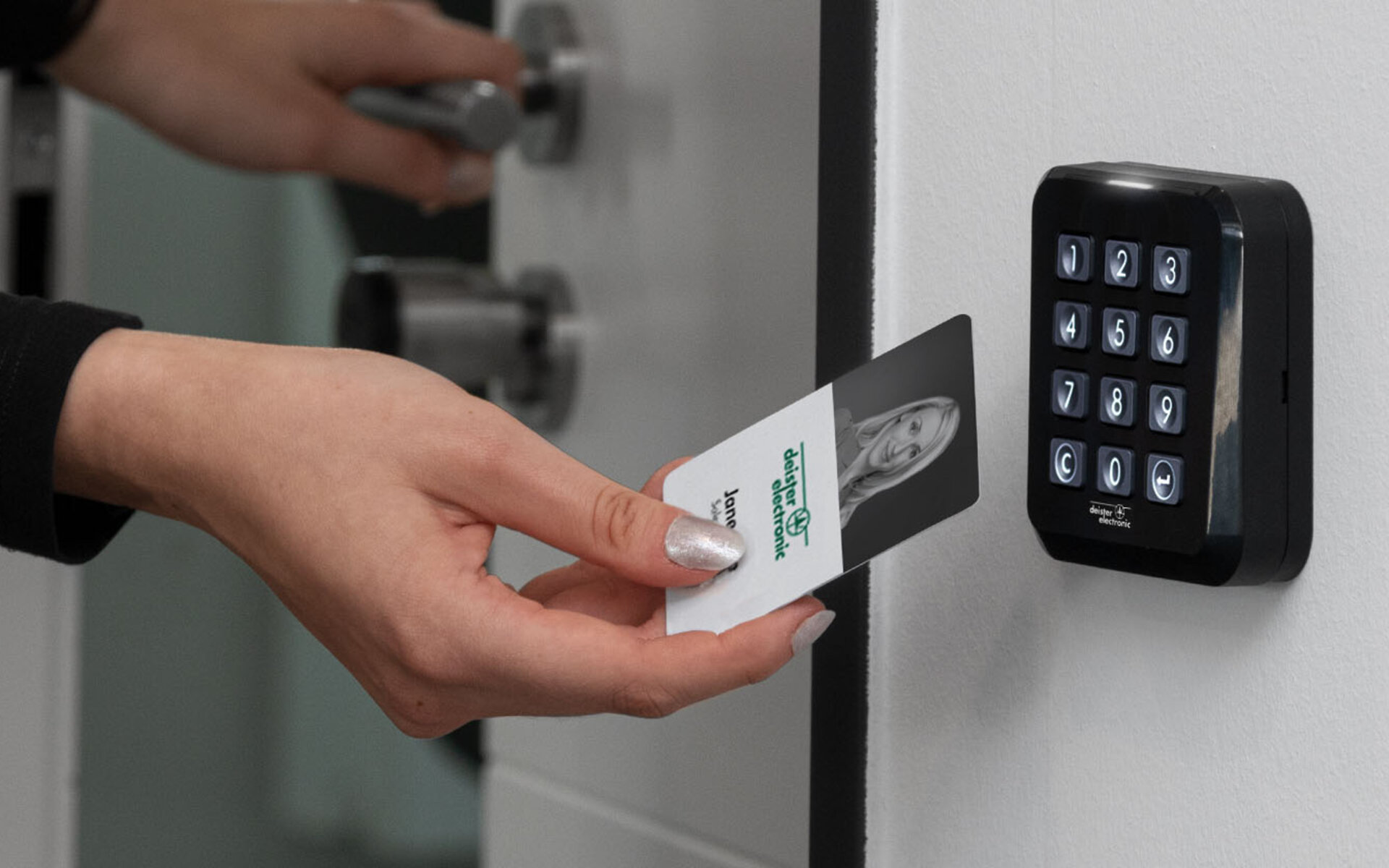

Featuring a high-quality keypad with backlit keys, our keypad readers are available in three designs. The separately arranged LEDs clearly indicate the status to the user, while the keypad provides haptic, visual, and acoustic feedback for enhanced user experience. Even users with red/green color deficiency can easily recognize the reader status based on LED positions.

Similar to the PRx access readers, the KPx keypad readers come with an open interface (Triple Technology™) to seamlessly integrate existing or future technologies.

• Highest quality construction
• Low power consumption
• Remote firmware update capability
• High-quality keypad with illuminated keys
• Triple Technology™ for versatile compatibility
• Available in two stylish colors: Cosmic Black & Astral Grey
• Replaceable cover for easy maintenance

All keypad readers

Our PRx 4 flush-mounted reader seamlessly fits into any conventional flush-mounted box, offering versatility in installation. Whether integrated into existing devices or installed with its own housing to match your design preferences, there are no limits to your creativity.

• Highest quality construction
• Compact design suitable for conventional flush-mounted boxes
• Low power consumption
• Remote firmware update capability
• Triple Technology™ for versatile compatibility

All flush-mounted readers

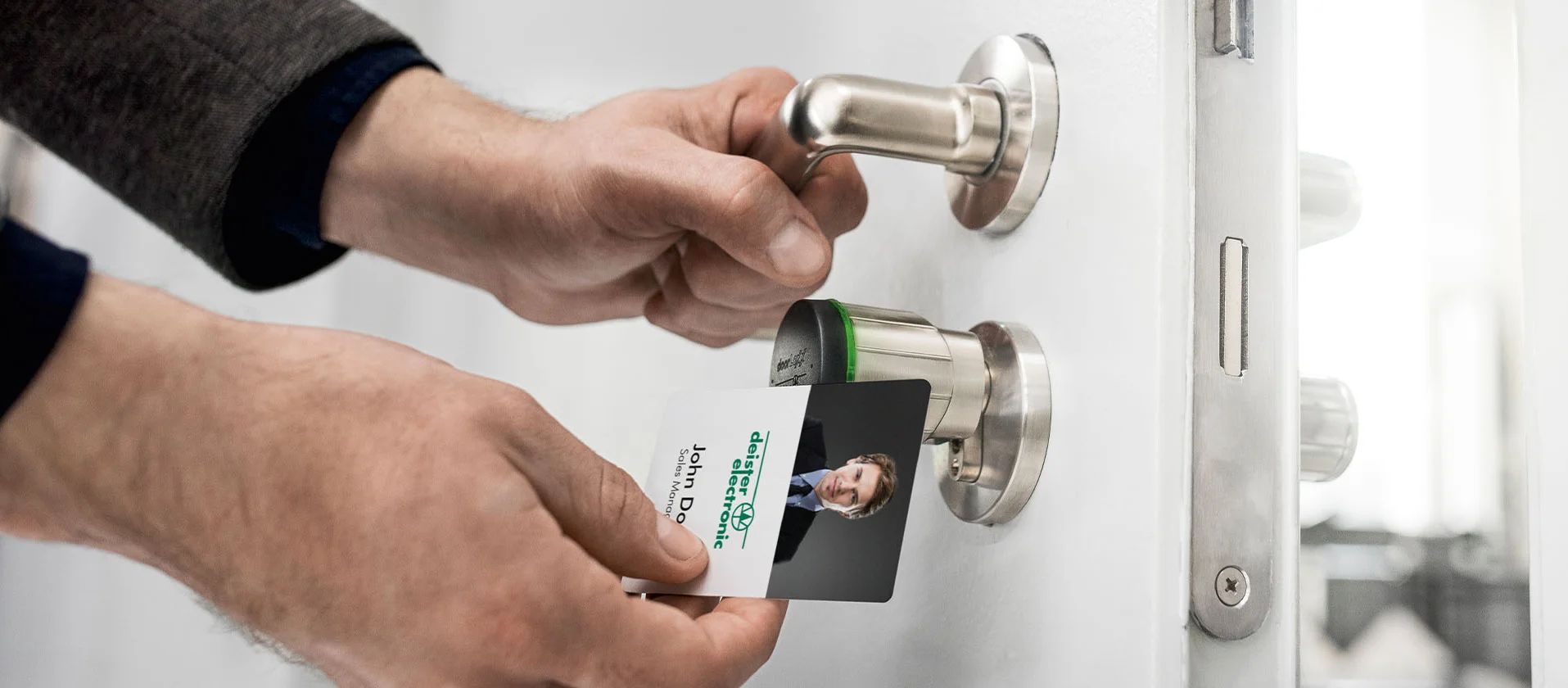

Just like a mechanical cylinder, our electronic cylinder can be installed in a few simple steps. No drilling or other door modifications are necessary, as the design remains identical. The basic cylinder bodies come in five different installation lengths, including a half cylinder, and can be adjusted in length directly during installation using spacers. This allows for adjustments in 5 mm increments from 30/30 to 45/75.

• Installation length adjustable during installation
• Superior quality - Made in Germany
• Fast reading speed

With its slim and straightforward design, the electronic door fitting is a perfect fit for any door. The handle comes in four different models, catering to both solid and tubular frame doors. For mounting, the same drill holes as for a conventional fitting can be utilized.

The cover plate allows for the simultaneous use of the existing cylinder for secure door locking or provides an elegant cover for the cylinder opening. An exchangeable cover plate allows for adaptation to doors with varying distances between the handle and cylinder, ensuring a perfect fit for any door.

• Suitable for every door
• Slim and elegant design
• Optional additional mechanical locking cylinder
• Simple battery change

The electronic motor lock is specifically designed for self-locking locks, seamlessly blending security with sleek design. Its minimalist design harmonizes discreetly with the door handle, offering maximum freedom in shape and color selection.

Moreover, the electronic lock enhances security as neither damage nor forcible removal of the housing or electronics grants access to the lock mechanism inside the door.

• Maximum design freedom
• Enhanced security
• Various designs to suit every door

Ensure the secure storage of valuables in lockers or wardrobes with the reliable electronic locker and furniture lock DCL 3 from deister electronic. This elegant and timeless electronic lock operates wirelessly, requiring no cables for installation. It can be quickly installed and easily managed using our Commander Connect software. Integration into professional building and asset management software is seamless, ensuring smooth operation.

• Available with different levers
• Attractive design suitable for various office furniture, lockers, and wardrobes
• Easy to assemble

The battery-operated Digital Safe is a robust key safe suitable for both outdoor and indoor use. Its weatherproof IP65 housing ensures durability in any weather conditions. Opening the Digital Safe is contactless, either with an access card or via an app. The reading technology can be customized, supporting popular options like MIFARE®, NFC™, or Bluetooth®. This enables seamless integration into existing access control systems, allowing it to be accessed using the same credentials.

The Digital Safe can also be flush-mounted for optimal mechanical protection, minimizing the impact of weather. With a 70mm diameter, it offers ample space for ISO cards and large bunches of keys. Additionally, it operates independently of local IT infrastructure and is standalone capable, ensuring reliability even in remote locations.

• 70mm diameter, spacious enough for ISO cards and large key bunches
• Independent of local IT infrastructure
• Standalone capability
• Weatherproof IP65 metal housing
• Content monitoring for added security

The WCU 2 door control module is a reader with built-in inputs and outputs, offering seamless integration into existing systems. It operates similarly to an electronic cylinder, requiring only a power supply for operation.

Ideal for scenarios where replacing an online reader is necessary, and the functionality of an electronic cylinder is insufficient, the WCU 2 provides the perfect solution.

• Integration into the system, resembling an offline reader
• Only requires power cabling for operation
• Available with integrated or remote reader options

The OCU 8 is an 8-door controller for electronic access control systems and vehicle access control. The OCU 8 has 4x RS485 reader ports, to each of which up to two readers can be connected. It has 8x I/Os for connecting peripheral devices. The DIN rail housing can be easily installed in the control cabinet or under the ceiling to save space. Modern and secure reader protocols like OSDP or transparent reader mode are supported. Own cryptology keys can also be used via a SIM card slot. The OCU 8 is powered by an external power supply and can control additional readers or peripherals via expansion modules. The OCU 8 controller is CloudReady and thus suitable for operation on-premise as well as via the cloud.

• Top-hat rail housing enables easy installation
• CloudReady
• 8x I/Os
• 4 RS485 reader ports, max. 8 readers
• OSDP, OSDP crypt, deBus, deBus crypt
• 100.000 users can be managed
• 500.000 event buffers
• Can be extended by expansion modules

The STC 1 P is a 1-door controller for electronic access control systems and access control. The STC 1 P itself has no reader ports or I/Os and must be operated together with the DCU 2 interface module. The DCU 2 provides the necessary reader port and I/Os for connecting the peripheral devices.

The DIN rail housing can be easily installed in the control cabinet or under the ceiling to save space. Modern and secure reading protocols such as OSDP or a transparent reader mode are supported. Own cryptology keys can also be used via a SIM card slot.

The STC 1 P is powered by PoE and is CloudReady and thus suitable for operation on-premise as well as via the cloud.

• Top-hat rail housing enables easy installation
• POE power supply
• CloudReady

The OEU 8 expansion module has four RS485 reader connections, eight potential-free relay outputs (four changeover and four make contacts) and eight digital, potential-free inputs. With this extension unit, the OCU 8 controller can be supplemented with the control option of up to eight additional doors.

The extension unit is automatically recognised by the Controller OCU 8. Via the built-in LEDs, the device status as well as the switching states of the inputs and outputs can be easily recognised on site, simplifying installation and commissioning.

• Easy installation
• Prepared for DIN rail mounting
• Adds four reader ports, eight digital inputs and eight relay outputs (four changeover and four make contacts) to the OCU 8 controller
• Includes all necessary I/Os and reader interfaces for controlling up to eight doors

The DCU 2 door control unit is an interface module for controlling a door. The DCU 2 can only be operated in conjunction with the STC 1 P.

The DCU 2 is equipped with four inputs, two of them designed as "Supervised Input", and two potential-free relay outputs.

The top-hat rail housing can be easily installed in the control cabinet or under the ceiling to save space. Modern and secure reader protocols such as OSDP or a transparent reader mode are supported.

• Top-hat rail housing allows easy installation
• 4x inputs, 2x supervised
• 2x relay outputs
• 1 RS485 reader port, max. two readers
• OSDP, OSDP crypt, deBus, deBus crypt

Introducing our proxSafe® key box maxx 6U, a compact and stylish solution for modern offices. With its space-saving roller shutter and robust steel design, this electronic key box ensures efficient key management. It accommodates single keys, narrow key bunches, or larger collections, and multiple boxes can be combined, all operated through a central terminal. Compatible with 3U keyPanels from the flexx series.

Our maintenance-free keyTags with integrated RFID chips securely anchor keys in the maxx key box via slot locking, ensuring double protection against manipulation, all concealed behind the roller shutter.

Retrieving a key is effortless – the roller shutter automatically lifts, highlighting the selected key slot in red. After retrieval, the shutter closes automatically, stopping if a hand is detected underneath for a user-friendly experience.

We will gladly support you in transitioning from your existing access control system to our modern access control system. We can make the transition comfortable and seamless for your users by, for example, making our access control readers temporarily compatible with the existing ones and our new ID media. Once everyone has received a new ID card, the old technology is switched off at the click of a mouse - so together we can create a smooth transition to a secure future.

• Flexible readers that read old and new ID cards
• Advice and support for a seamless transition
