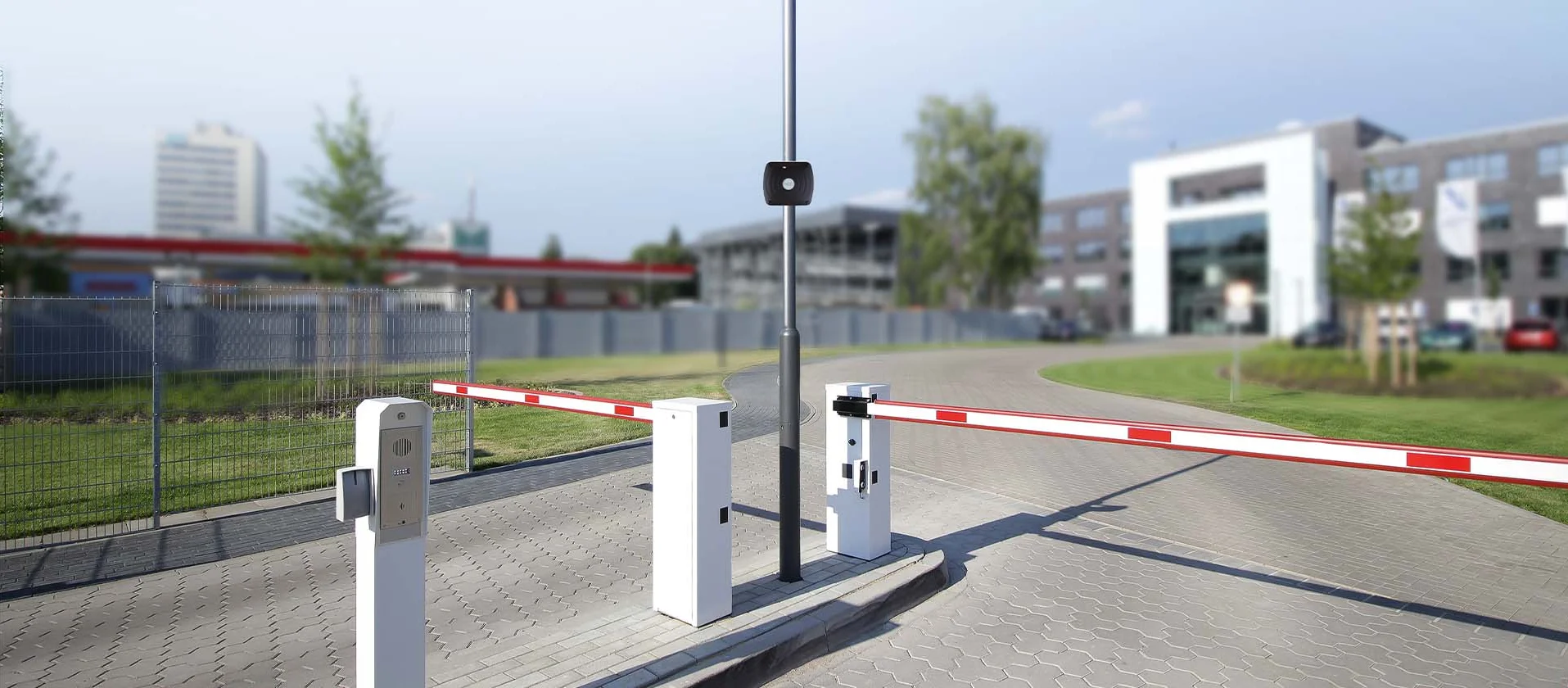

TSU200 at carpark Wide

Vehicle Identification

Reliable long-range identification utilising RFID technology, specifically passive UHF for effective parking management and access control.

Reliably Identifies Vehicles

Automated long-range vehicle identification

Swift, reliable, dependable and automatic long-range identification (AVI) accurately recognises drivers and vehicles under all weather conditions. This technology eliminates queues in access and exit areas, making it ideally suited for applications such as car parks, traffic management, and convenient access control. Moreover, the technology finds applications in various settings, including rail traffic, access-restricted city centers, airports, or toll roads. tranSpeed® seamlessly integrates with existing control systems through numerous interfaces and can also function as a stand-alone solution. A diverse range of transponders is available, including robust heavy-duty transponders, self-adhesive labels for windshields and ISO cards that skillfully combine two reading technologies.

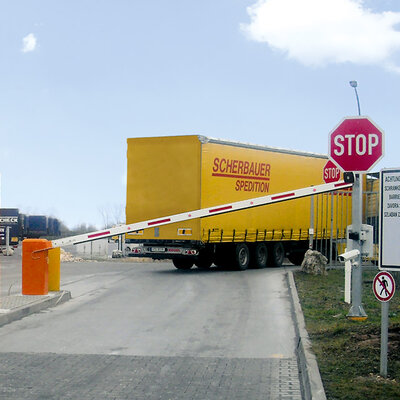

Vehicle identification for freight forwarder
ISO card as credential for access control
TSU 200 long-range reader
Parking cars

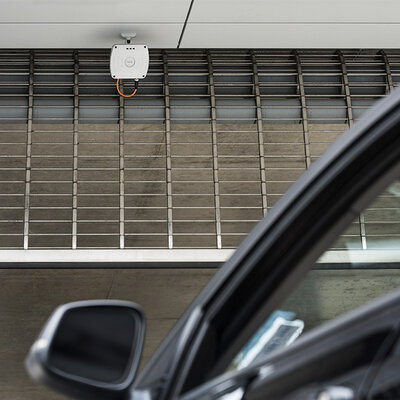

Car park identification

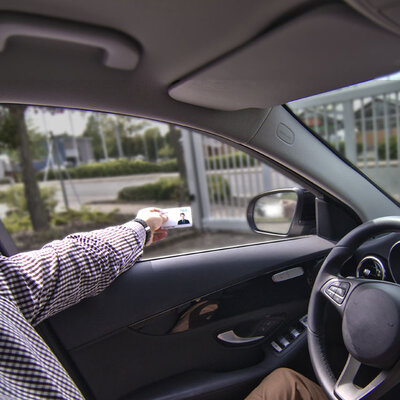

ISO card as credential for TSU 200
POC installation tool

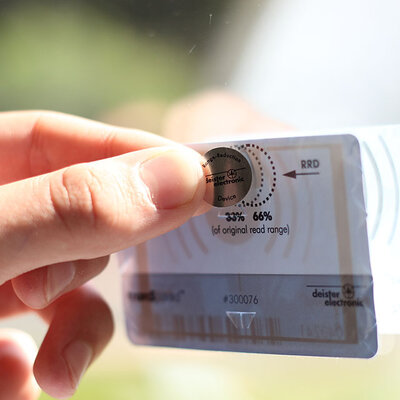

Winshield tag on windshield screen

Long-range readers

TSU 200

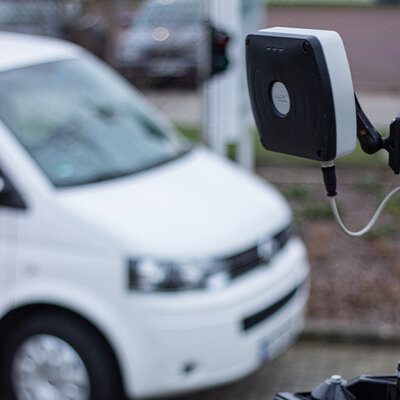

TSU 200 long-range reader

TSU 200

The TSU 200 is a durable and space-efficient long-range reader equipped with an integrated antenna designed for passive UHF transponders. Its water-resistant housing enables versatile usage, both indoors and outdoors.

Capable of covering distances up to 7 meters, the TSU 200 is particularly well-suited for applications like access control. Common usage scenarios include multi-storey car parks, underground garages, surface-level parking lots, and access points to company premises, among others.

All long-range readers

Transponders

Bumper tagWindshield tagDriver credential
UDC 160 / UDC 170 bumper tag for cars

Bumper tag

The UDC 160 / 170 represents a passive UHF transponder employing the EPC Class 1 Gen 2 protocol. Its antenna technology enables direct mounting on metal surfaces (on-metal transponder), allowing for reading across a 180° radius.

The expansive reading angle, coupled with a range of up to 5 meters, makes it an ideal choice for applications in logistics, factory automation, or vehicle identification. Installation on vehicles, containers, trains, etc., is effortlessly and rapidly achieved using screws or adhesive.

All transponders

TPU 3082 / TPU 3092 windshield transponder

Windshield tag

The TPU 3082/92 is a passive UHF transponder designed for vehicle windshields, complying with the EPC Class 1 Gen 2 standard. Ideal for vehicle identification in applications like car parks, these transponders are easily applied to the windscreen. The optional vignette function ensures tamper resistance, rendering the transponder unusable upon removal.

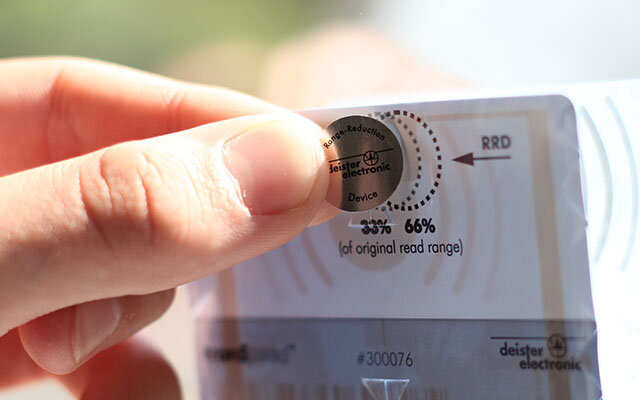

With enhanced security features, the TPU 3082/92 offers a maximum reading range of up to 6 meters. If a reduced range is preferred, the RRD sticker can be used to limit it to 66% or 33% as needed.

All transponders

ISO card driver

Driver credential

Our Dual Technology credentials offer an ideal solution for driver identification. By presenting the transponder card to the reader, the driver can be conveniently identified without leaving the vehicle.

Our innovative antenna design ensures reliable reading, regardless of how or where the driver holds the credential. Additionally, this dual technology credential supports RFID for both driveway and building access, streamlining access with a single card for premises and building entry.

All credentials

Accessories

POCSIC Converter

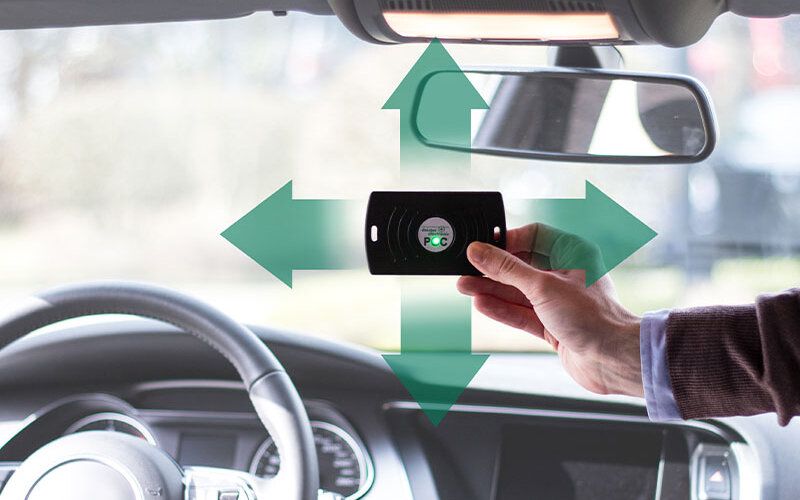

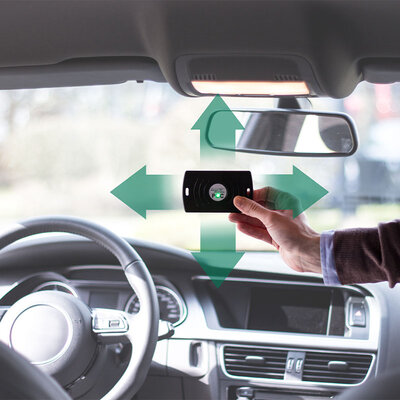

POC installation tool

POC

Optimal installation

In establishing a long-range solution, the strategic placement of the long-range reader and vehicle transponder is crucial for reliable detection. The patented POC serves as an ideal solution, functioning like a standard transponder but with an integrated LED. This LED indicates the communication status between the reader and transponder, aiding in swiftly identifying the optimal transponder position for efficient operation.

SIC Converter

SIC Converter

Versatile controller compatibility

Our long-range reader seamlessly integrates with almost any controller through the use of SIC converters. We have successfully incorporated numerous protocols and can work with you to analyze and implement new protocols.

This ensures a cost-effective transition to our long-range readers while allowing you to maintain compatibility with your existing controllers.

All converters

Controller

OCU 8
OCU 8 Controller

OCU 8

Gate and barrier control

The OCU 8 access controller, featuring 8x I/Os, connects with up to eight readers for flexible driveway control. It allows simultaneous operation of UHF long-range readers and HF readers for dual identification using UHF transponders and access cards.

  • Connect up to eight readers via 4x RS485 ports
  • Simultaneous operation of UHF wide-range and HF readers
  • Easy installation with top-hat rail housing
  • Cloud-ready
  • Offline capability during network failures

Benefits of our solution

Plug-and-play

Plug & Play

Quick and easy installation

The compact design with integrated antennas allows the readers to be mounted easily and without taking up too much space. The connection is established via a rugged M12 plug and only one combined cable for power and data.

ISO card as credential for access control

Driver Identification

One card for access and entry

If the driver and not the vehicle needs to be identified at the entrance, our Dual Technology credential is the ideal solution. With its world-leading range and the combination of both RFID technologies in one card, you can operate both doors and entrances with the same credential.

Winshield tag on windshield screen

Fraud Protection

Data encryption and vignette function

A specially developed vignette function prevents the removal or concealed replacement of the windshield transponders. In addition, the data on all transponders is encrypted by the deister "smart frame" and protected against manipulation.
